• Address:

    Erbil, Iraq

  • Client:

    Ministry of Culture of the Regional Government of Kurdistan, Iraq

  • Description of the work:

    restoration research

  • Realization:

    2006

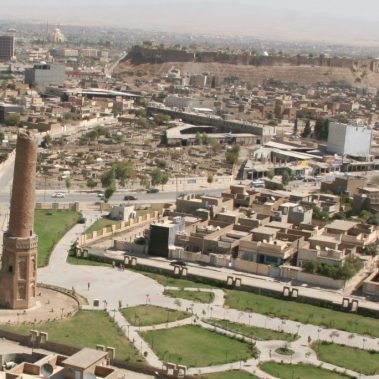

Erbil, originally Sumerian and Assyrian city is located in the foothills of the eastern Iraqi mountains is believed to be the oldest permanently inhabitated city in the world. Choli minaret is dated to the Atabag period ( 12th Century). The structure was built from low burnt bricks using gypsum based renders and mortars. Due to the long term effect of deterioration, the essential part of the architecture has dissappeared and thus the leaning minaret is the last survival of the past mosque.

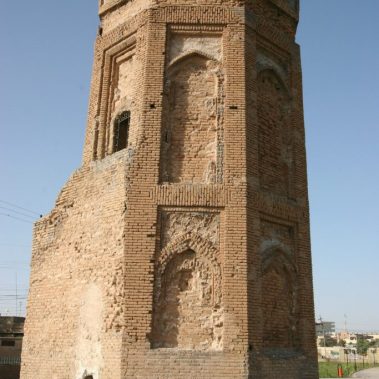

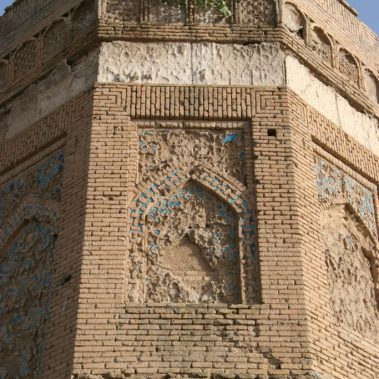

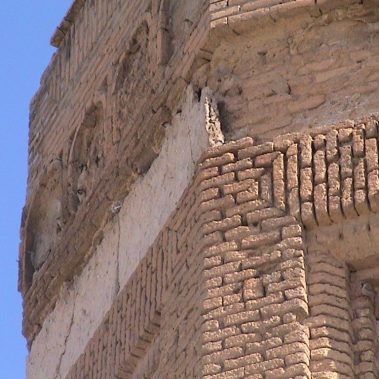

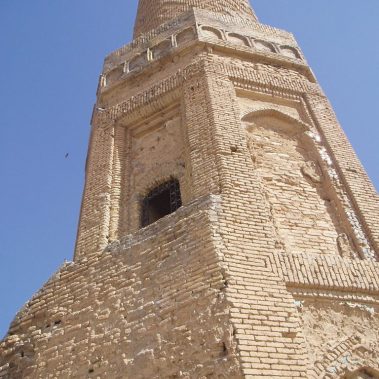

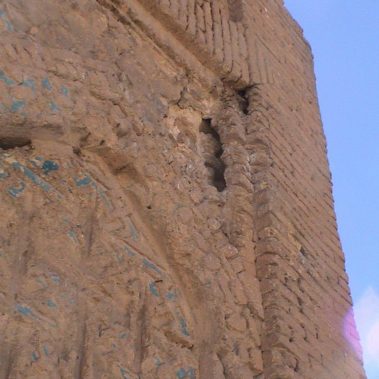

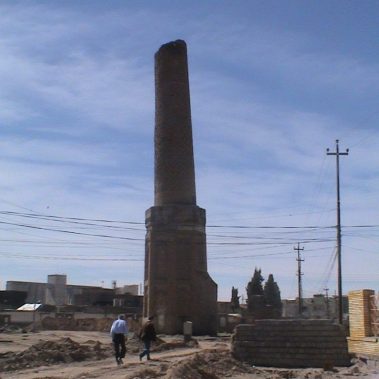

The current shape of the minaret covers the lower, seven-angle section of about 12 m high and upper broken cylindrical part of approximately 24 m high. The body shelters a double spiral staircase. A large extent of precious historic fragments of renderings and embossments were identified in the lower part of the object. Particularly large scale findings of Egyptian blue ceramic decoration in niches are considered as upmost important. All fragments of ceramic, brick and stucco decorations were seriously affected by weathering and mechanical damages.

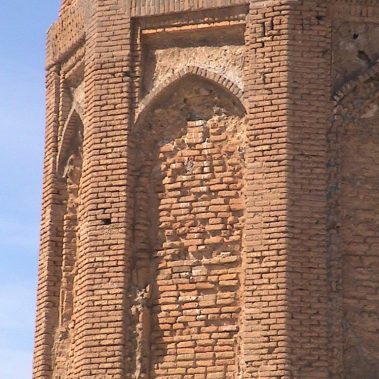

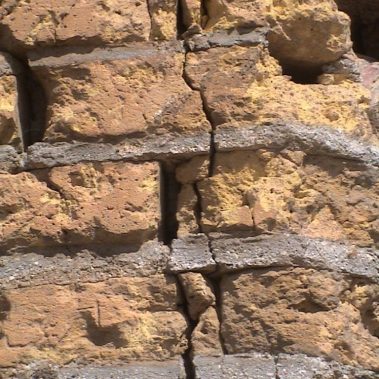

Probably due to the sudden movement of the geological underground layers the whole structure lost its upper part. Subsequent long term effects of leaking rain water and the intensive weathering made the structure unstable and the surface of the minaret heavily deteriorated. There was also serious loss of joint material and decrease of binding media in the joint mortar.

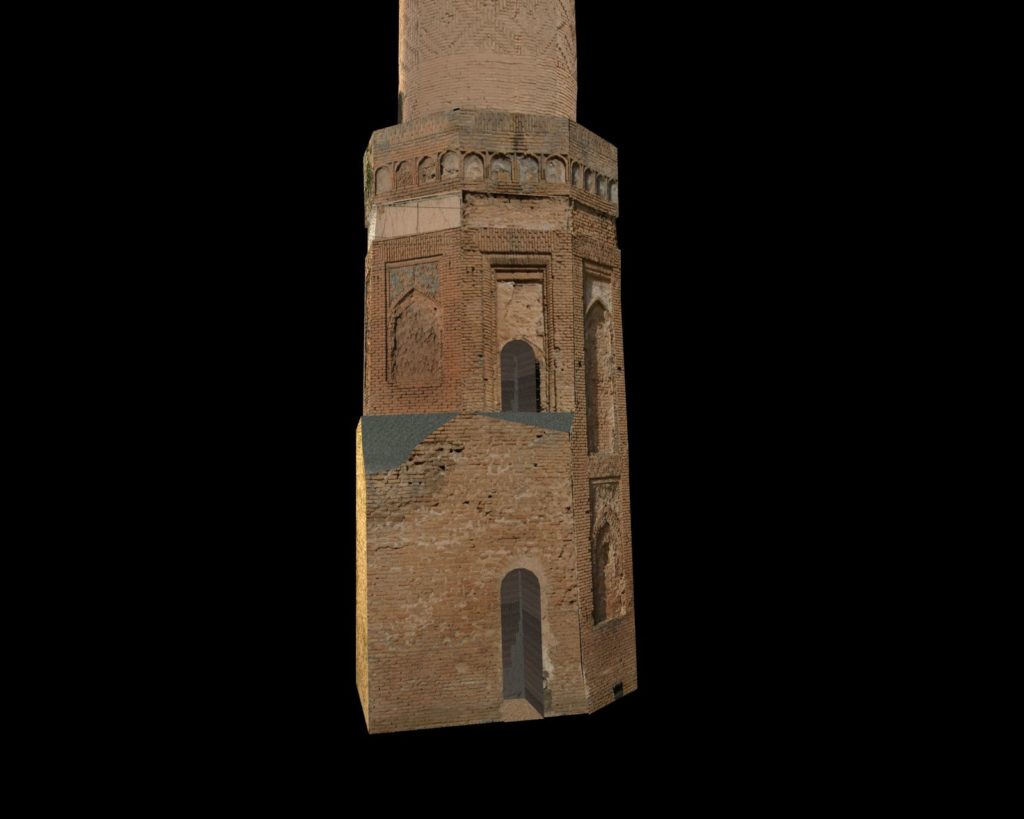

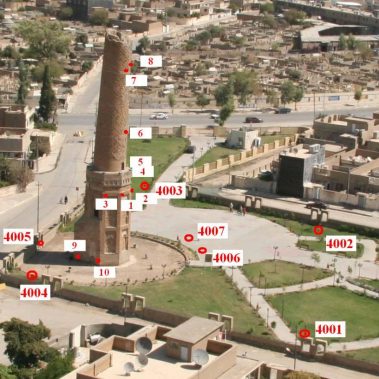

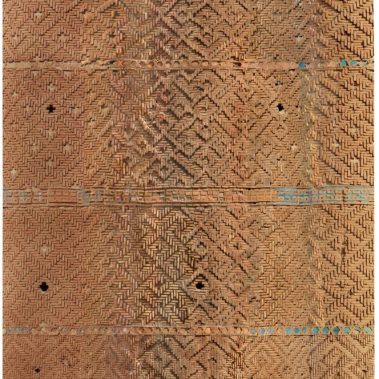

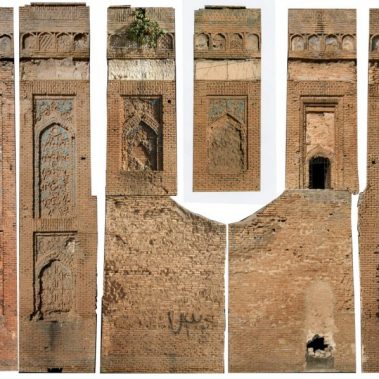

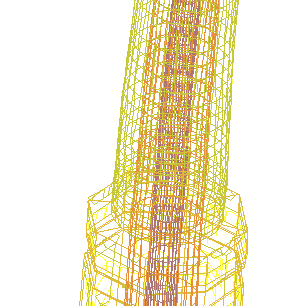

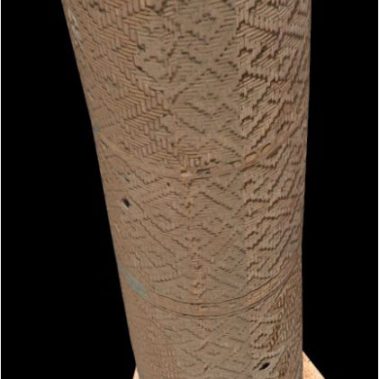

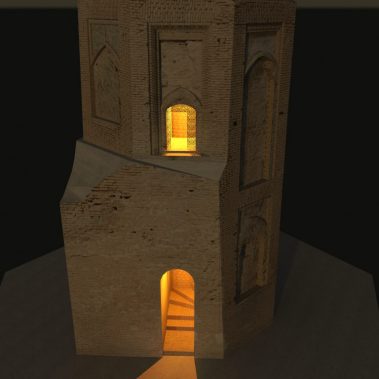

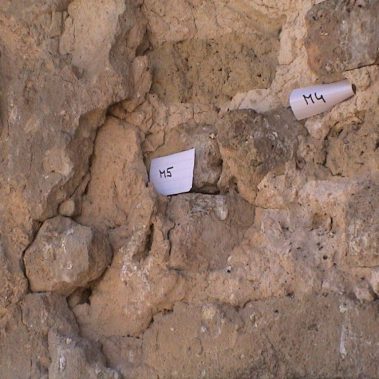

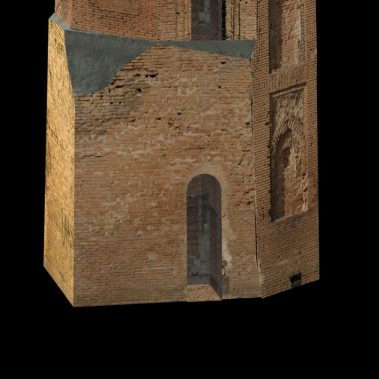

The general assessment of the whole monument had carried out before the conservation and stabilization of the minaret started. The research covered photogrammetry documentation, 3D vizualization, comprehensive geo-physical survey of the surroundings (incl. Micro-gravimetry, Shallow Refraction Seismology, Resistance methods and Seismic 3D/2D Tomography), comprehensive material research, geological survey and static measurements. General seismic study was carried out to identify the origin of inclination and reasons of the historic loss of the upper part of the minaret.
The policy of intervention was kept in terms of pure conservation of the historic landmark. The conservation of masonry covered repointing of all joints, consolidation of bricks and restoration of fragments of decorations including color and plastic retouching. The interior of staircases has been rehabilitated. Bricks for substitutions were hand made and produced according to the historic technology in the specialized brick workshop with the respect to the historic ratio of raw materials.
All refilling material followed the results of the research of ancient materials to be fully compatible with the original. Last remaining stucco architectural parts that were in acute danger of collapsing were re-attached back to the core of the minaret. The area around the minaret was fully drained.
